• For 10mm Glass
• Clear Vinyls Secure Glass in Channel and Eliminate the Need for Messy Silicone
• Recess in Bottom Channel Hides Caulk Line Channel and Matching End Caps
• Available in Bright Anodised & Brushed Nickel

Fixed Panel U-Channel
Cat. No.	Glass Thickness	Length	Finish
WDDUC38BA	10mm	2.5m	Bright Anodised
WDDUC38BN	10mm	2.5m	Brushed Nickel

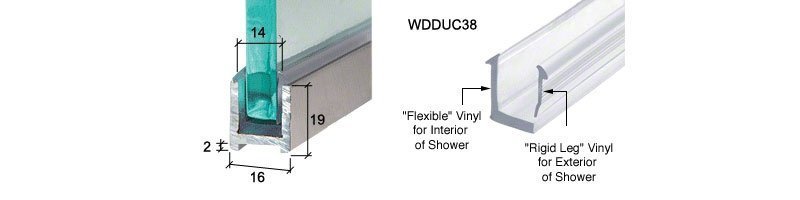

The Dry Glaze U-Channel offers the installer many benefits. It eliminates the need for messy silicone between the glass and metal, dramatically reducing installation time. If the glass is ever scratched or damaged it can be removed without the need to cut out the sealant. The extruded aluminum channel is wrapped in a protective poly sleeve with two pieces of clear vinyl to secure 10mm glass. The “Flexible” Vinyl goes on the interior of the shower, while the “Rigid Leg” Vinyl “rolls in” on the exterior side. Matching finish End Caps adhere to channel ends, and are available separately.
